Waterguard Basement Drainage Channel

Sort
Showing 21 of 21 Products
Waterguard Basement Drainage Channel
Showing products 1 to 21 of 21
30 ft Waterguard Basement Drainage Channel 8 x 3ft9"
$447.00
$596.00

30ft Waterguard channel 8 x 3ft 9" lengths

Waterguard collects water from the wall floor joint and directs it to the sump chamber. It sits above the footer to avoid blocking with dirt (as a drain tile system can). A special flange allows water to be collected from the face of the foundation wall into the sub - floor channel. This listing is priced per box of 30ft (8 x 3'9" lengths)  FOR MORE INFORMATION CLICK ON THE '+' BUTTONS BELOW.

4ft Waterguard Basement Drainage Channel 2x2ft box
$79.47

This is for 2 x 2ft lengths, total 4ft per box.

Waterguard collects water from the wall floor joint and directs it to the sump chamber. It sits above the footer to avoid blocking with dirt (as a drain tile system can). A special flange allows water to be collected from the face of the foundation wall into the sub - floor channel. This listing is priced per box of 4ft (2 x 2' lengths)  FOR MORE INFORMATION CLICK ON THE '+' BUTTONS BELOW.

60 ft Waterguard Basement Drainage Channel 8 x 7ft 6"
$1,192.00

60ft Waterguard channel 8 x 7ft 6" lengths

Waterguard collects water from the wall floor joint and directs it to the sump chamber. It sits above the footer to avoid blocking with dirt (as a drain tile system can). A special flange allows water to be collected from the face of the foundation wall into the sub - floor channel. This listing is priced per box of 30ft (8 x 3'9" lengths)  FOR MORE INFORMATION CLICK ON THE '+' BUTTONS BELOW.

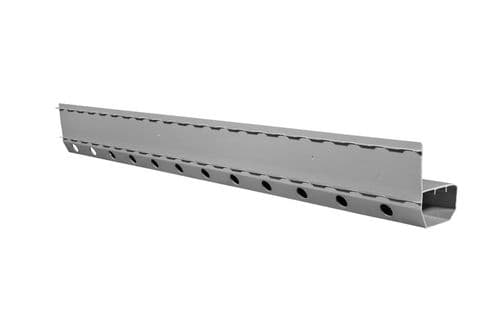

7ft 6" Waterguard Basement Drainage Channel 2 x 3ft 9" lengths
$112.12
$149.50

7'6" Waterguard Channel in 2 x 3ft 9" lengths.

Waterguard collects water from the wall floor joint and directs it to the sump chamber. It sits above the footer to avoid blocking with dirt (as a drain tile system can). A special flange allows water to be collected from the face of the foundation wall into the sub - floor channel. This listing is priced per 2 x 3'9" lengths, if you order more than one it will be supplied as   FOR MORE INFORMATION CLICK ON THE '+' BUTTONS BELOW.

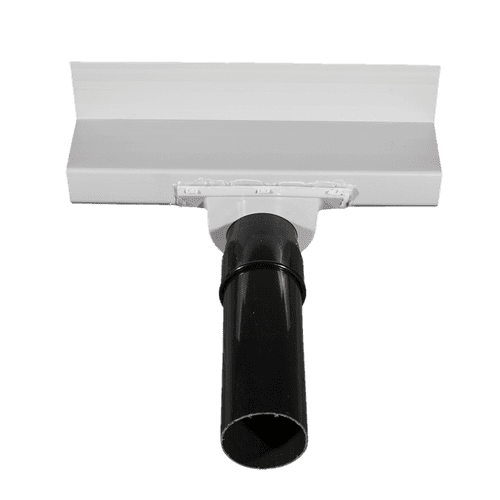

Waterguard Drain Outlet
$65.95
The Waterguard Drain outlet is an essential accessory to a typical Waterguard installation. This cleverly designed component connects the Waterguard channel to the sump pit and creates the flow of water (along the horizontally laid Waterguard channel). It comes with a section of 2 3/4" (65mm) drain pipe and an adaptor for easy connection to the sump chamber.

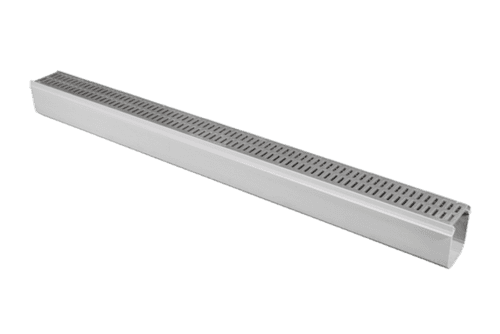

Door Threshold  Drain 3' length (aka TrenchDrain)
$66.00
$91.66
This channel is used to protect against water ingress via an external door, such as at the bottom of an external stairwell. It is also useful for going around water tanks or to protect against any potential water seepage which might occur over the floor surface.

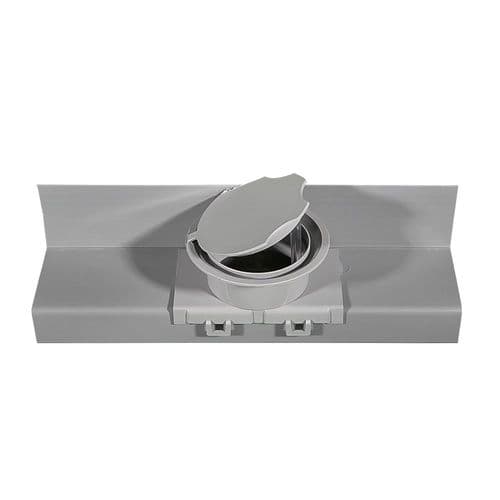

Waterguard Inspection port
$49.95
These ports have been designed with improvements over the old Basement Systems' ports. They are telescopic so that the lid may be set exactly at the right height in relation to the finished floor. The lid is hinged so it cannot be mislaid and is less likely to be damaged. The lid has an air-tight seal
Waterguard inside corners 90 degree
$24.95
These are actual pieces of Waterguard, pre-mitered and joined together. They save valuable time on site having to miter your own Waterguard. They come in four types - See information below.

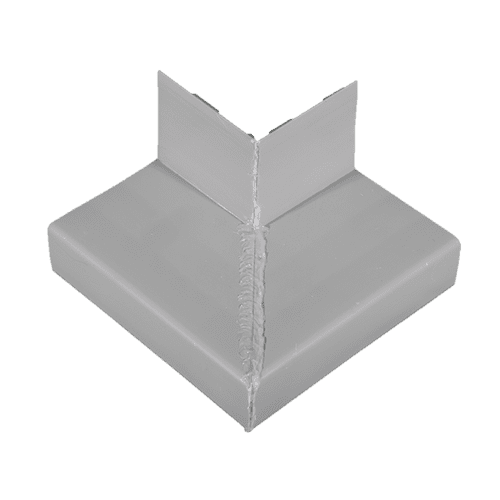

Waterguard outside corners 270 degree
$24.95
These are actual pieces of Waterguard, pre-mitered and joined together. They save valuable time on site having to miter your own Waterguard. They come in four types - See information below.

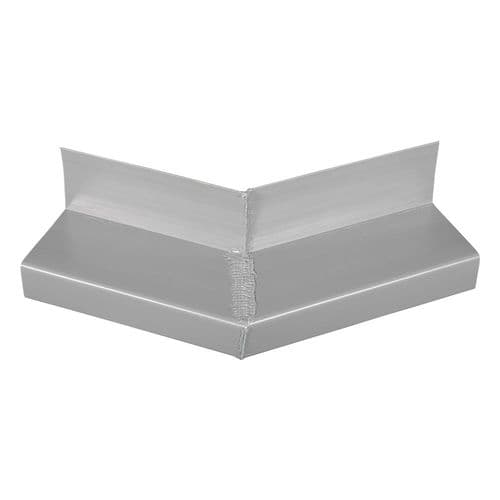

Waterguard splayed  225 degree outside corner (aka outside 45degree)
$24.95
These are actual pieces of Waterguard, pre-mitered and joined together. They save valuable time on site having to miter your own Waterguard. They come in four types - See information below.

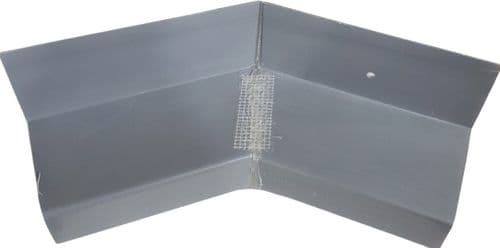

Waterguard splayed corner 135 degree (aka 45 degree inside corner)
$24.95
These are actual pieces of Waterguard, pre-mitered and joined together. They save valuable time on site having to miter your own Waterguard. They come in four types - See information below.
15 ft WATERGUARD FLANGELESS  2 x7'6" lengths
$169.00
Flangeless Waterguard is similar to regular Waterguard but without the flange. It is designed for use around the perimeter of the basement but is also useful for cross-floor runs of channel which are sometimes necessary for large basements and those with isolated spots of hydro-static pressure - which can cause water to well up in the middle of the floor.

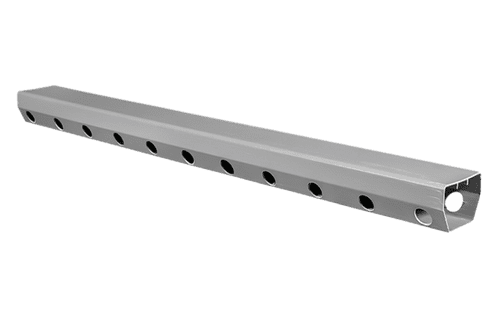

WATERGUARD FLANGELESS 7'6" length
$79.00
Flangeless Waterguard is similar to regular Waterguard but without the flange. It is designed for use around the perimeter of the basement but is also useful for cross-floor runs of channel which are sometimes necessary for large basements and those with isolated spots of hydro-static pressure - which can cause water to well up in the middle of the floor.

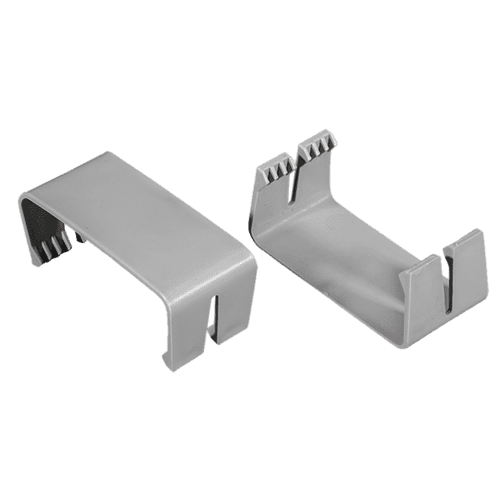

Waterguard (Flangless) Mechanical Jointing Clip
$0.95
These mechanical jointing clips are for the Flangeless Waterguard only - they are not compatible with the Flanged version of Waterguard. The clips are not necessary for joining the corner pieces or the drain outlet as these simply sleeve over the Flangeless Channel.

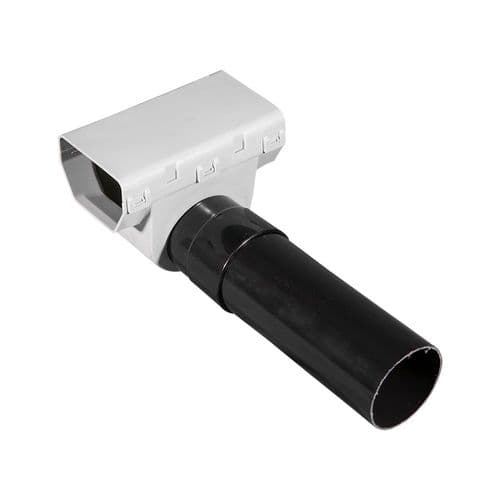

Waterguard Flangless Drain Outlet
$46.50
The Waterguard Drain outlet is an essential accessory to a typical Waterguard installation. This cleverly designed component connects the Waterguard channel to the sump pit and creates the flow of water (along the horizontally laid Waterguard channel). It comes with a section of 2 .75" (65mm) drain pipe and an adapter for easy connection to the sump chamber.

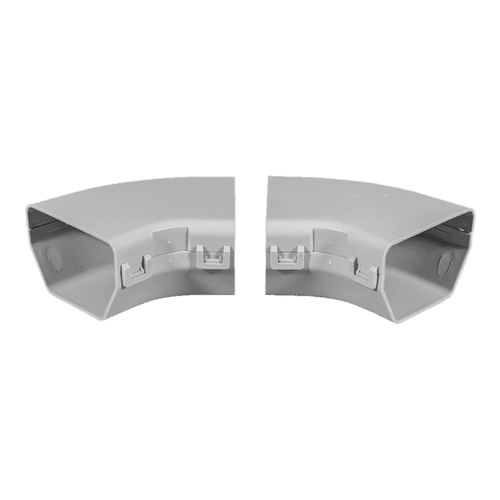

Waterguard Flangeless Corners
$19.95
This listing is for a pair of Curved 45 degree corners, they may be used together to make one 90 degree corner or singly as two individual 45 degree corners. They are reversible so you can create inside and outside 45 degree or 90 degree corners from this one item. They can also be installed with an inspection port between them as shown in the final illustration - see below for more information.

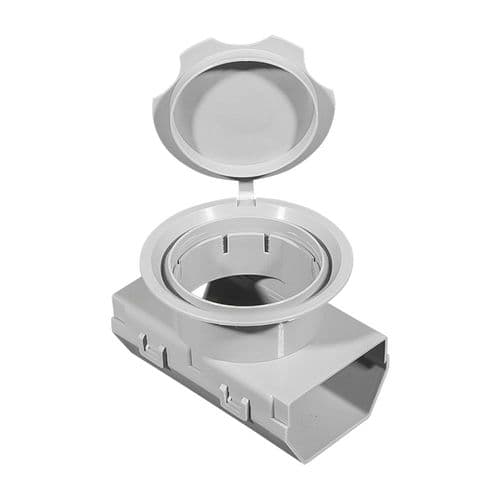

Waterguard Flangless Inspection Port
$29.95
These ports have been designed with improvements over the old Basement Systems' ports. They are telescopic so that the lid may be set exactly at the right height in relation to the finished floor. The lid is hinged so it cannot be mislaid and is less likely to be damaged. The lid has an air-tight seal.
Flo-Guard -for when you need to put Base-Drain in front of the footer
$69.00
This is used to dress over the joint between the footer and the foundation wall. It allows water to flow over the footer to the Base-Drain channel, in situations where it is necessary to put the channel in front of the footer, for example if there is not enough depth of concrete over the footer to allow Base-Drain to be installed in the regular way.

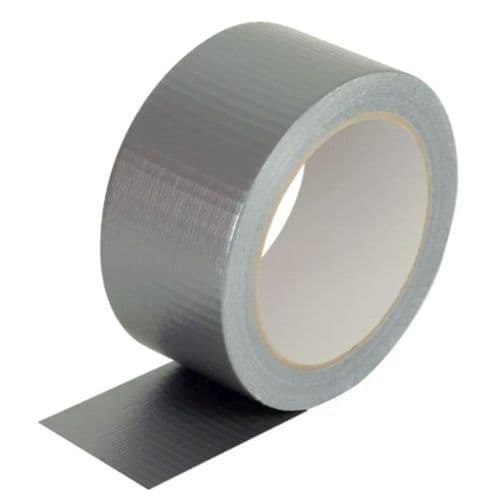

Waterguard jointing tape 10m roll
$9.95

Single sided reinforced grey tape.  Sticks to wet plastic, so is ideal for Waterguard installation.

The tape should be applied to the top and the front of the channel, there is no need to apply it to the bottom or the back.  for partial system where there the Waterguard channel has open ends a few strips of tape should be used to close off the open ends - see our Waterguard installation guide for full details.

One 10m roll is sufficient to install up to 120 ft of Waterguard Channel as supplied in 3'9" lengths so there will be plenty left over after a single installation.  The tape has many uses.

Waterguard Basement Drainage Channel for DIY installation.

Waterguard sub-floor basement drainage channel is designed to sit on top of the footer so it doesn't clog with silt and mud washing into it (like drain tile can). Waterguard is the most widely used system in the USA and Canada by Basement Systems professional installers.

Waterguard Channel comes in two versions: -

Waterguard with built-in wall drain (aka flange) designed to collect water from the wall surface and prevent puddles forming on the basement floor.

Flangeless Waterguard can be used as a cross floor drain, useful for waterproofing larger basements and solving problems of leaking basement floor cracks. This version of Waterguard is also used in front of the footer where the floor slab is too shallow to accommodate and above footer Waterguard installation. The flangeless version is also useful in basements where the wall-floor joint is leaking but there is no water coming down the basement walls.

A full range of Waterguard accessories are available including Waterguard inspection ports (aka clean-outs) drain outlets and corner pieces.

Please note that the accessories for the flangeless Waterguard system and not compatible with the flanged Waterguard channel and vice vera.

The Waterguard system is designed for ease of installation, you can request our Waterguard DIY installation guide here and we provide comprehensive online support to our DIY and contracting customers, you can schedule a remote appointment with a basement waterproofing expert here.
